HP DesignJet T630 Large Format 24″ Plotter Printer
KSh 158,000.00
| Feature | Technical Specification |
| Model Name & Part Number | HP DesignJet T630 24-in Plotter Printer (5HB09D#B19) |
| Condition | Brand New (Factory Sealed Box) |
| Print Technology | HP Thermal Inkjet |
| Print Speed | 30 seconds/page on A1/D (Up to 76 A1 prints per hour) |
| Print Resolution | Up to 2400 \times 1200\text{ optimized dpi} |
| Ink Types & Colors | 4 Cartridges: Dye-based (Cyan, Magenta, Yellow); Pigment-based (Black) |
| Line Accuracy | \pm 0.1\% |
| Media Handling | Sheet feed, roll feed, automatic sheet feeder (A3/A4 tray), media bin, automatic cutter |
| Supported Roll Sizes | 279 mm to 610 mm (11 inches to 24 inches width) |
| Sheet Feeder Capacity | A4, A3 cut sheets (60 to 220\text{ g/m}^2) |
| System Memory | 1 GB RAM |
| Connectivity | Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11\text{a/b/g/n}, Wi-Fi Direct |
| Printing Software | HP Click App, HP Smart App, HP-GL/2 driver, Apple AirPrint |
| Dimensions & Weight | 1013 \times 605 \times 932\text{ mm} (39.9 \times 23.8 \times 36.7\text{ in}) | 28.9\text{ kg (63.7\text{ lbs) |
| Manufacturer Warranty | 1-Year Limited Hardware Warranty |

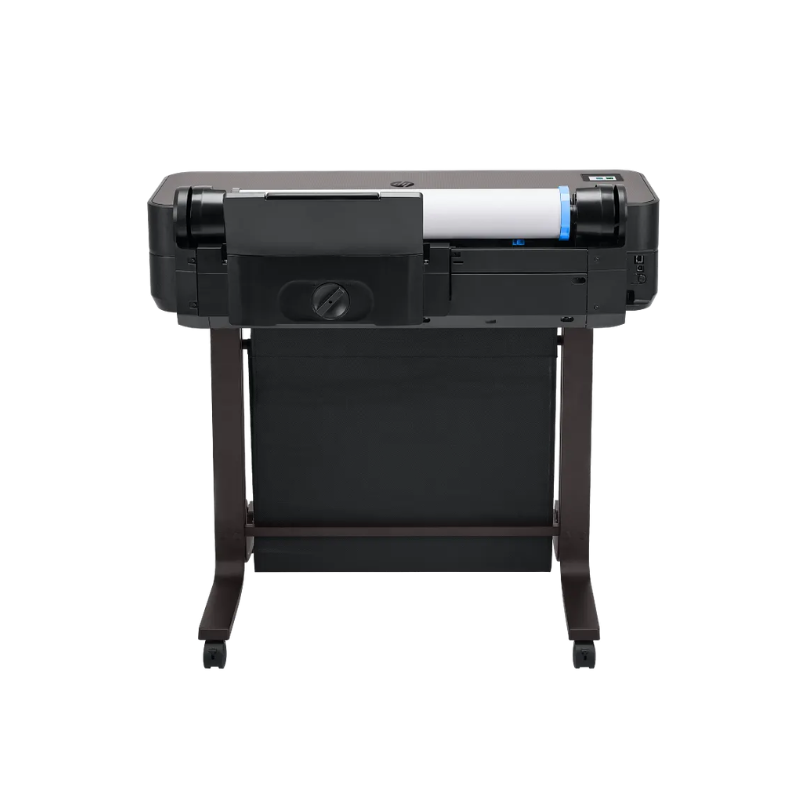

HP DesignJet T630 Large Format 24″ Plotter Printer (5HB09D#B19)
The HP DesignJet T630 24″ Large Format Plotter Printer (5HB09D#B19) is a compact, high-precision CAD and poster printing solution engineered for architects, engineers, construction firms, and GIS professionals. Delivering crisp line drawings and vivid graphics at speeds as fast as 30 seconds per A1/D page, this plotter simplifies complex print workflows while saving valuable office space.
Supplied NEW with a 1-Year Warranty, the HP DesignJet T630 includes an integrated automatic sheet feeder (A3/A4), continuous media roll feeding, an automatic horizontal cutter, a dedicated media bin, and a sturdy printer stand. Equipped with Ethernet, Wi-Fi Direct, and mobile printing through the HP Click software, it allows team members to send multi-size CAD drawings seamlessly in a single click.
Technical Specifications
| Feature | Technical Specification |
| Model Name & Part Number | HP DesignJet T630 24-in Plotter Printer (5HB09D#B19) |
| Condition | Brand New (Factory Sealed Box) |
| Print Technology | HP Thermal Inkjet |
| Print Speed | 30 seconds/page on A1/D (Up to 76 A1 prints per hour) |
| Print Resolution | Up to 2400 \times 1200\text{ optimized dpi} |
| Ink Types & Colors | 4 Cartridges: Dye-based (Cyan, Magenta, Yellow); Pigment-based (Black) |
| Line Accuracy | \pm 0.1\% |
| Media Handling | Sheet feed, roll feed, automatic sheet feeder (A3/A4 tray), media bin, automatic cutter |
| Supported Roll Sizes | 279 mm to 610 mm (11 inches to 24 inches width) |
| Sheet Feeder Capacity | A4, A3 cut sheets (60 to 220\text{ g/m}^2) |
| System Memory | 1 GB RAM |
| Connectivity | Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11\text{a/b/g/n}, Wi-Fi Direct |
| Printing Software | HP Click App, HP Smart App, HP-GL/2 driver, Apple AirPrint |
| Dimensions & Weight | 1013 \times 605 \times 932\text{ mm} (39.9 \times 23.8 \times 36.7\text{ in}) | 28.9\text{ kg (63.7\text{ lbs) |
| Manufacturer Warranty | 1-Year Limited Hardware Warranty |
HP DesignJet T630 Large Format 24″ Plotter Printer Key Features & Benefits
- Automatic Multi-Size Printing: Integrated A3/A4 automatic sheet feeder lets you print cut sheets and continuous rolls simultaneously without manually switching media sources.
- Ultra-Fast Speed & Sharp Precision: Output detailed CAD schematics in 30 seconds with \pm 0.1\% line accuracy and 2400\text{ dpi} detail.
- HP Click One-Click Printing: Send multiple PDF or CAD files simultaneously using HP Click software, reducing paper waste and pre-print verification steps.
- Sustainable & Efficient: Constructed using up to 30% recycled plastic, utilizing up to 95% less ink for routine maintenance routines compared to competing plotters.
- Flexible Modern Connectivity: Print wirelessly from desktop workstations, smartphones, or tablets using Ethernet, Wi-Fi Direct, or the HP Smart App.
HP DesignJet T630 Large Format 24″ Plotter Printer Key Pros
- World’s smallest large-format plotter footprint with built-in stand and catch bin.
- Dual media switching (Auto A3/A4 Tray + 24-inch Roll) saves setup time.
- Crisp line quality using pigment black ink for smudge-resistant blueprints.
- Includes 1-Year official manufacturer warranty cover.
HP DesignJet T630 Large Format 24″ Plotter Printer Suitable Application Areas
- Architectural & Civil Engineering Offices: Printing high-detail blueprints, structural elevation plans, and MEP drawings.
- Construction Worksite Offices: Rapid production of A1 and A2 site layouts, CAD line drawings, and project schedules.
- GIS & Surveying Agencies: High-resolution mapping, satellite overlays, and topographic survey sheets.
- Corporate & Advertising Design: Creating promotional posters, presentation boards, and infographics up to 24 inches wide.
HP DesignJet T630 Large Format 24″ Plotter Printer Product Variations & Pricing
| HP DesignJet Model | Roll Width | Auto Feeder & Stand | Estimated Price Range (KSh) |
| HP DesignJet T230 24″ | 24-inch (610 mm) | Stand & Feeder Optional | KSh 125,000 – KSh 140,000 |
| HP DesignJet T630 24″ (5HB09D) | 24-inch (610 mm) | Included (Stand, Bin, Feeder) | KSh 165,000 – KSh 185,000 |

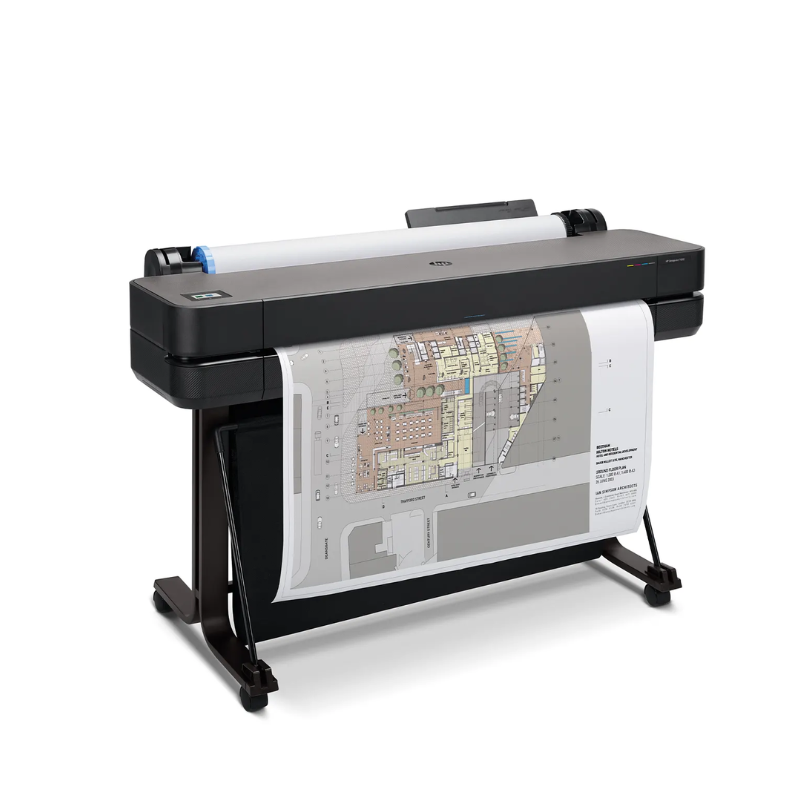

| HP DesignJet T630 36″ | 36-inch (914 mm) | Included (Stand, Bin, Feeder) | KSh 220,000 – KSh 245,000 |
Shop for more deals: Explore our complete range of commercial plotters, inkjet units, and laser printers at Editech HP Printers in Kenya.
Available at Editech Computers — FAQs for HP DesignJet T630 24″
Q: Does the HP DesignJet T630 24″ plotter come with a printer stand and sheet feeder?
A: Yes. The T630 model includes the printer stand, paper catch bin, automatic sheet feeder (A3/A4 tray), and roll spindle in the factory box.
Q: Can I print directly from my smartphone or laptop without cables?
A: Yes. The T630 features integrated Wi-Fi and Wi-Fi Direct, enabling wireless printing via the HP Smart App or Apple AirPrint from mobile devices and laptops.
Q: What ink cartridges does the HP DesignJet T630 use?
A: It uses HP 712 ink cartridges (Cyan, Magenta, Yellow dye-based inks, and Pigment Black ink).
What is in the Box?
- 1 x HP DesignJet T630 24-inch Plotter Printer (5HB09D#B19)
- 1 x Factory Printer Stand with Fabric Media Catch Bin
- 1 x Automatic Sheet Feeder Assembly (A3/A4 Tray)
- 1 x Printhead Assembly
- 4 x HP 712 Introductory Ink Cartridges (C, M, Y, K)
- 1 x 24-inch Roll Media Spindle
- Power Cord, Setup Poster, Quick Reference Guide
- Editech Tax Invoice & 1-Year HP Warranty Certificate
Verdict
The HP DesignJet T630 24″ Large Format Plotter Printer is a top-tier choice for engineering, architectural, and design teams needing fast, high-resolution CAD output. Combining a small footprint with automatic multi-size media switching, wireless connectivity, and an all-inclusive stand and paper bin, it provides unbeatable reliability and professional printing efficiency.
