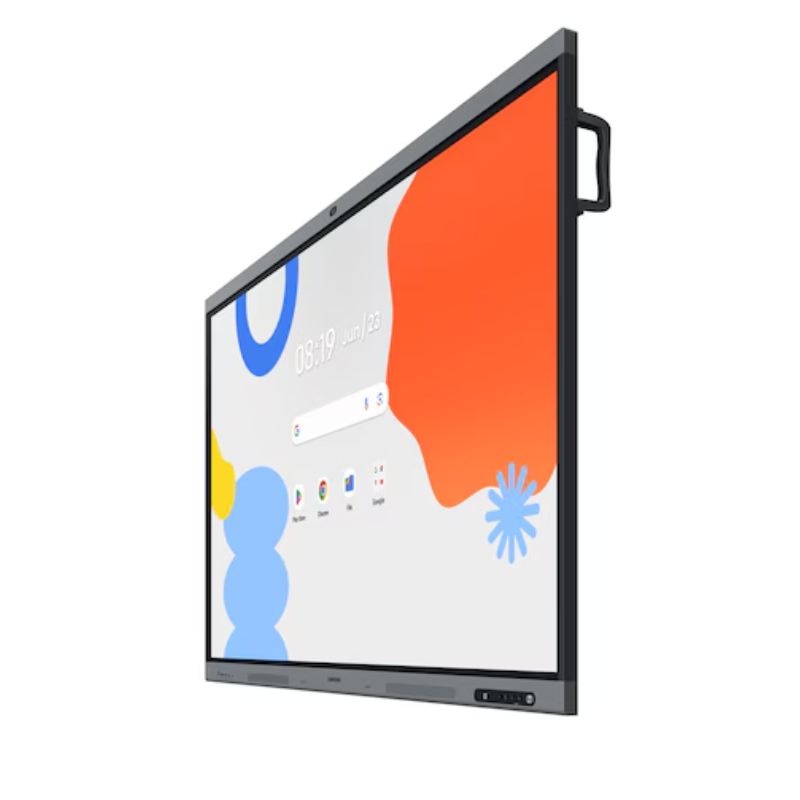

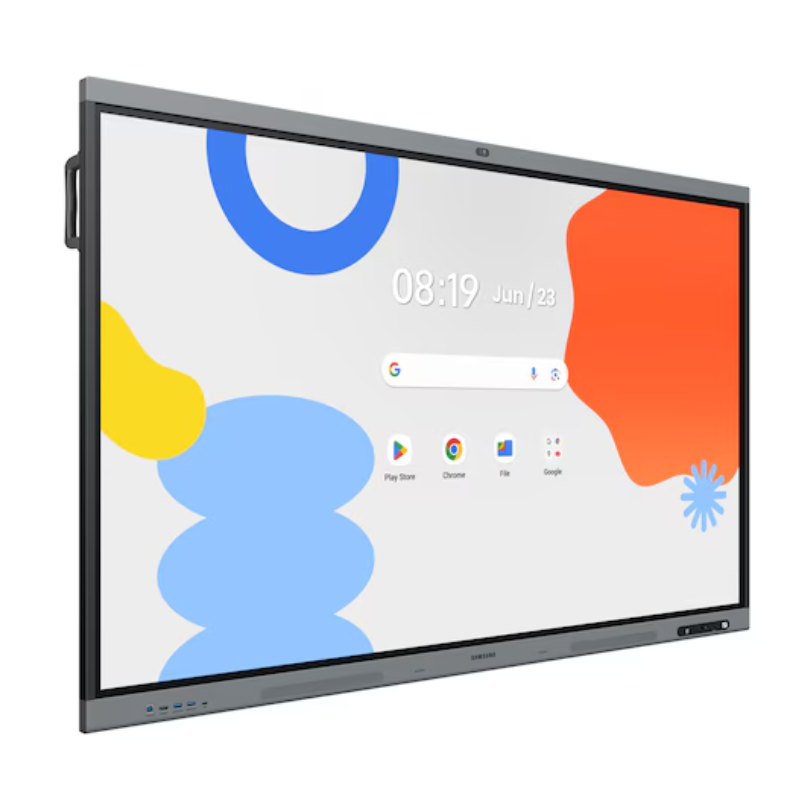

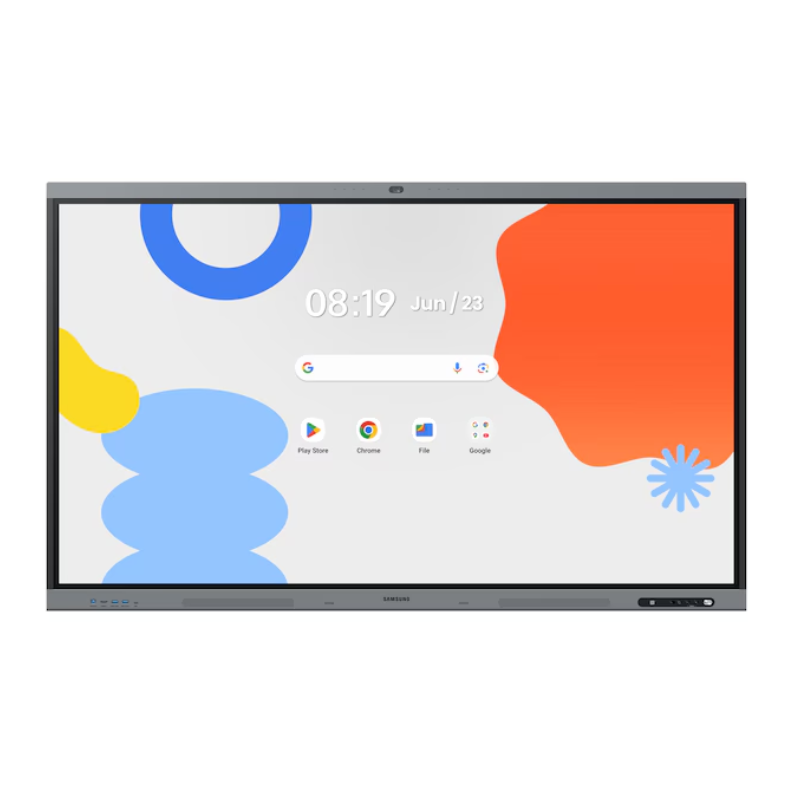

Samsung 86 Inch WA86FX-P Interactive Screen Display

The Samsung 86 Inch WA86FX-P Interactive Screen Display is built to power interactive learning, high-level corporate presentations, and real-time remote collaboration. Featuring a massive 86-inch 4K UHD IPS panel with 50-point multi-touch capability, it gives presenters the power to annotate, zoom, and navigate complex content with zero lag. Driven by an integrated Google EDLA-certified Android OS, this commercial display delivers seamless Google Workspace integration to power modern workflows across digital classrooms and boardrooms.

Engineered with an integrated 4K webcam, an 8-array microphone array, and a 60W 2.1-channel sound system, the WA86FX-P holds the power to run high-definition video calls out of the box without requiring external AV gear. Full-function USB-C connectivity provides the power to transmit 4K video, touch feedback, and 65W laptop pass-through charging over a single cable. Modern IT departments gain the administrative power to manage fleets remotely using Samsung Whiteboard DMS, while anti-glare toughened glass guarantees constant visual power in brightly lit environments. This unit includes a 1-Year Warranty, available at Editech Computers Store and online with countrywide delivery.

Technical Specifications

Feature	Technical Specification
Model Code	Samsung 86 Inch WA86FX-P(LH86WAFPLGCXUE)
Condition & Warranty	Brand New — 1-Year Hardware Warranty & Store Support
Display Diagonal	86-Inch (217.4 cm) Anti-Glare IPS Panel
Native Resolution	4K UHD (3840 x 2160 @ 60Hz)
Brightness & Contrast	450 cd/m² (Typical) / 1,200:1 Static Contrast Ratio
Touch Technology	Infrared Touch (Supports up to 50 Simultaneous Points)
Operating System	Android OS (Google EDLA Certified)
Integrated Camera & Mic	Built-in 4K UHD Camera + 8-Array Far-Field Microphone
Built-in Audio System	60W 2.1 Channel Speaker System (2x 20W + 20W Subwoofer)
VESA Mounting & Duty	800 x 600 mm / 16/7 Continuous Commercial Operation

Samsung 86 Inch WA86FX-P Connectivity Options

• Video Inputs: 3 x HDMI (Digital Input), 1 x DisplayPort 1.4
• Video Output: 1 x HDMI Out (Loop-through to secondary display)
• USB Ports: 1 x USB Type-C (DP Alt Mode, Touch Return & 65W PD), 5 x USB-A 3.0 Ports
• Network & Expansion: 1 x RJ-45 Gigabit LAN, 1 x OPS Slot (for PC module expansion)
• Audio & Wireless: 1 x 3.5mm Audio Out, Integrated Wi-Fi, Bluetooth & Miracast Screen Share

Samsung 86 Inch WA86FX-P Key Features & Benefits

• 50-Point Multi-Touch Whiteboarding: Multiple users can write, draw, and erase simultaneously using dual magnetic pens or finger touch.
• All-in-One Conference Setup: Built-in 4K camera, 8-array mic, and 60W speakers remove the need for extra video bar hardware.
• Google EDLA Certification: Grants direct access to Google Play Store, Google Meet, Chrome, and Microsoft Teams natively.
• Universal Single-Cable USB-C: Transmits 4K display signal, touch data, audio, and charges connected laptops up to 65W.

Samsung 86 Inch WA86FX-P Key Pros

• Integrated video conferencing hardware turns the board into an immediate hybrid meeting hub.
• Google EDLA certification allows native download of corporate and educational apps.
• High-volume 60W 2.1 speaker system covers large boardrooms and lecture halls.
• Standard OPS slot allows easy transformation into a Windows 11 PC display.

Samsung 86 Inch WA86FX-P Suitable Application Areas

• Corporate Boardrooms & Strategy Rooms: Running interactive presentations, strategy mapping, and global video conferences.
• Higher Education & Digital Classrooms: Interactive teaching using digital whiteboards, Google Classroom, and document annotation.
• Auditoriums & Training Facilities: Delivering large-scale interactive training sessions with multi-screen broadcasting.
• Engineering & Architectural Reviews: Annotating 3D CAD models, site blueprints, and high-resolution schematics.

Interactive Display Variations & Pricing

Display Size & Model	Panel Tech & Touch	Operating System	Estimated Price Range (KSh)
Samsung 65″ WA65FX-P	4K IPS / 50-pt IR Touch	Android EDLA OS	KSh 280,000 – KSh 340,000
Samsung 75″ WA75FX-P	4K IPS / 50-pt IR Touch	Android EDLA OS	KSh 380,000 – KSh 450,000
Samsung 86″ WA86FX-P	4K IPS / 50-pt IR Touch	Android EDLA OS	KSh 520,000 – KSh 620,000
Samsung 85″ Flip Pro (WM85B)	4K UHD / Quantum Dot	Tizen OS + OPS Slot	KSh 650,000 – KSh 780,000

Shop for more Samsung deals: Browse our full range of commercial screens, interactive boards, and display panels at Editech Display Screens in Kenya.

Available at Editech Computers — FAQs

Q: Can I use the Samsung WA86FX-P with a Windows laptop?

A: Yes. You can connect your Windows laptop via HDMI and USB-A (for touch return) or use a single full-function USB-C cable for video, audio, and interactive touch response.

Q: Where can I get official installation guidelines and user documentation for setting up this screen?

A: Official user manuals, wall-mount specifications, and hardware setup guides are available directly on the Samsung Interactive Display Setup Guide & Support Page.

Q: How is this unit delivered across Kenya?

A: Editech Computers offers secure countrywide shipping and on-site delivery for large-format displays across Nairobi and major towns in Kenya.

What is in the Box?

• 1 x Samsung 86 Inch WA86FX-P Interactive Screen Display (LH86WAFPLGCXUE)
• 2 x Samsung Passive Stylus Pens
• 1 x Remote Control Unit (with batteries)
• 1 x Power Cord & Regional Adapter
• 1 x HDMI Cable & 1 x USB Touch Cable
• 1 x Wall Mount Bracket Kit
• 1 x Quick Setup Manual & Editech 1-Year Warranty Card

Samsung 86 Inch WA86FX-P Verdict

The Samsung 86 Inch WA86FX-P Interactive Screen Display is an enterprise-grade collaborative workstation. By combining an 86-inch 4K touchscreen, native Google EDLA Android OS, an integrated 4K camera with microphone array, and 60W sound output, it offers an all-in-one solution for modern interactive spaces.
