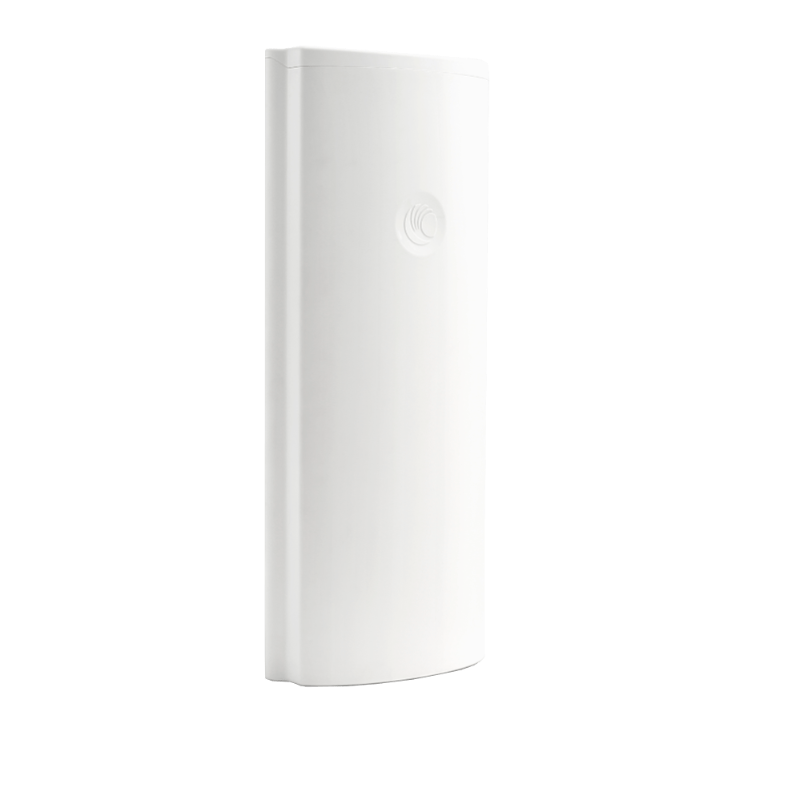

Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna

Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna

Product Overview & Features Description

Supercharge your wireless internet service provider (WISP) tower deployments with the Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna (Part Number: C050910D301A). Purpose-built to pair with the flagship ePMP 3000 Access Point radio, this antenna provides true multi-user MIMO capabilities, enabling simultaneous data transmission to two independent subscriber modules in the same time slot. Operating across the 4.9 GHz to 5.97 GHz spectrum with consistent 17 dBi gain and an optimized 90-degree coverage beamwidth, the Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna ensures wide sector penetration without performance dips.

Interference mitigation is standard across noisy suburban and metropolitan towers. The Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna achieves an industry-leading front-to-back ratio of over 30 dB. This remarkable RF isolation facilitates dense ABAB channel re-use, allowing operators to double spectral efficiency and serve over 120 subscribers without burning through scarce spectrum.

Engineered with dual slant horizontal and vertical polarizations, the Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna delivers broad null fill so clients located at the base of the mast or near sector margins receive uniform signal strength. Tower installation is fast and hassle-free thanks to the pre-integrated ePMP radio slide-on mounting bracket and included low-loss RP-SMA coaxial jumper cables.

Order the enterprise-grade Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna from Editech Computers Store to elevate your backhaul and point-to-multipoint networks. When high throughput and spectral cleanliness matter, deploying the Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna guarantees peak network availability. Elevate your carrier infrastructure today by choosing the Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna for robust wireless distribution.

Technical Specifications

Specification Field	Technical Detail
Product Name	Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna
Manufacturer SKU / Part Number	C050910D301A
Antenna Type	Sector Antenna (Directional Base Station)
MIMO Configuration	4×4 Multi-User MIMO (MU-MIMO)
Frequency Range	4.9 GHz to 5.97 GHz (Continuous Spectrum)
Antenna Gain	17 dBi nominal
3 dB Beamwidth (Azimuth)	70 Degrees
6 dB Beamwidth (Azimuth)	90 Degrees
3 dB Beamwidth (Elevation)	6 Degrees
Electrical Downtilt	-2 Degrees built-in
Front-to-Back Ratio	> 30 dB (Enables ABAB Channel Re-use)
Polarization	Dual slant (2x Horizontal, 2x Vertical)
RF Connectors	4x 50-Ohm Reverse Polarity SMA (RP-SMA) Jack
Port-to-Port Isolation	> 25 dB across operating band
Wind Survival Rating	Up to 200 km/h (124 mph)
Integrated Radio Mount	Native snap-in bracket for ePMP 3000 4×4 Access Point
Environmental Protection	IP65 outdoor UV-stabilized radome

Cambium Networks ePMP 3000 RF & Mechanical Connectivity Breakdown

• RF Coaxial Ports: 4x 50-Ohm RP-SMA Female connectors designed for direct 4×4 connection to the ePMP 3000 AP.

• Jumper Cables: Includes 4x weatherproof low-loss RG-58/LMR-type RP-SMA to RP-SMA coaxial jumper cables with protective boots.

• Access Point Integration: Rear-mounted bracket for direct, toolless slide-and-lock attachment of the ePMP 3000 radio.

• Pole Mounting Hardware: Heavy-duty clamp assembly supporting mast diameters from 1.5 inches to 3.0 inches (38 mm to 76 mm) with mechanical tilt adjustment (-10° to +5°).

Cambium Networks ePMP 3000 Pros & Key Benefits

• Simultaneous Dual-Client MU-MIMO: Transmits to two 2×2 subscriber modules at the exact same moment, doubling overall sector sector throughput up to 1.2 Gbps.

• ABAB Frequency Re-Use: A front-to-back isolation greater than 30 dB allows you to reuse the same channel pairs on back-to-back sectors, cutting spectrum licensing requirements in half.

• Consistent 17 dBi Gain: Maintains uniform gain across the 4.9 to 5.97 GHz band, eliminating dead zones and unpredictable edge falloffs.

• Optimized Null Fill Pattern: Engineered elevation pattern delivers dependable coverage to customers close to the tower base without tilting the entire sector downward.

• LINKPlanner Integration: Fully modeled in Cambium Networks LINKPlanner for accurate 3D RF line-of-sight and capacity predictions before climbing the mast.

Variation & Comparison Price Matrix (Kenya Shillings – KSh)

Antenna Model	Configuration & Gain	Coverage Beamwidth	Frequency Band	Estimated Price (KSh)
ePMP 3000 4×4 Sector (This Unit)	4×4 MU-MIMO / 17 dBi	90° Azimuth	4.9 – 5.97 GHz	KSh 48,500
ePMP 3000 Dual-Horn Antenna	4×4 MU-MIMO / 12 dBi	60° Azimuth	5.1 – 6.1 GHz	KSh 52,000
ePMP 3000L 2×2 Sector Antenna	2×2 MIMO / 17 dBi	90°/120° Azimuth	4.9 – 5.97 GHz	KSh 34,500
ePMP Smart Beamforming Antenna	Dynamic Uplink Beamforming	Steerable Uplink	5.1 – 5.8 GHz	KSh 42,000

Looking for compatible base stations and wireless links? Shop for more Cambium Networks deals at Editech.

Suitable Application Areas

1. High-Density WISP Point-to-Multipoint (PtMP): Delivering high-speed broadband to suburban and peri-urban residential clusters with heavy concurrency.
2. CCTV & Safe City Surveillance Aggregation: Backhauling multiple high-definition IP camera feeds from remote gatehouses, estates, and municipal checkpoints.
3. Enterprise Campus & Industrial Branch Links: Connecting multi-building operations, factories, logistics yards, and agricultural processing hubs.
4. Rural Connectivity Initiatives: Extending low-cost carrier-grade wireless links over broad geographic spans with minimal spectrum utilization.

Frequently Asked Questions (FAQs)

Q: What is in the box when I purchase?

• 1x Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna (C050910D301A)

• 4x Weatherproof RP-SMA to RP-SMA RF jumper cables

• 1x Heavy-duty mast mounting bracket kit with elevation tilt adjustments

• Integrated ePMP 3000 radio snap-in bracket and hardware documentation

Q: Can I use this antenna with a 2×2 radio like the ePMP 3000L or Force 300?

While physical adapters can terminate two ports, this antenna is engineered specifically for 4×4 radios like the ePMP 3000. For 2×2 radios, the dedicated ePMP 2×2 90°/120° sector antenna is more cost-effective.

Q: Where can I download documentation, beam patterns, and installation guides?

You can access official planning models, CAD specs, and user manuals directly at the Cambium Networks ePMP 3000 Sector Antenna Official Product Resources Hub.

Q: How do I order this sector antenna in Kenya?

Available directly at Editech Computers Store for retail pickup, or via Online Purchase with Countrywide delivery across Kenya.

The Cambium Networks ePMP 3000 4×4 MU-MIMO Sector Antenna delivers the spectral efficiency and RF performance that modern wireless internet service providers demand. Featuring a 17 dBi gain profile, dual-polarization layout, and over 30 dB front-to-back ratio for ABAB channel reuse, it maximizes client capacity and ensures long-term return on infrastructure investment
