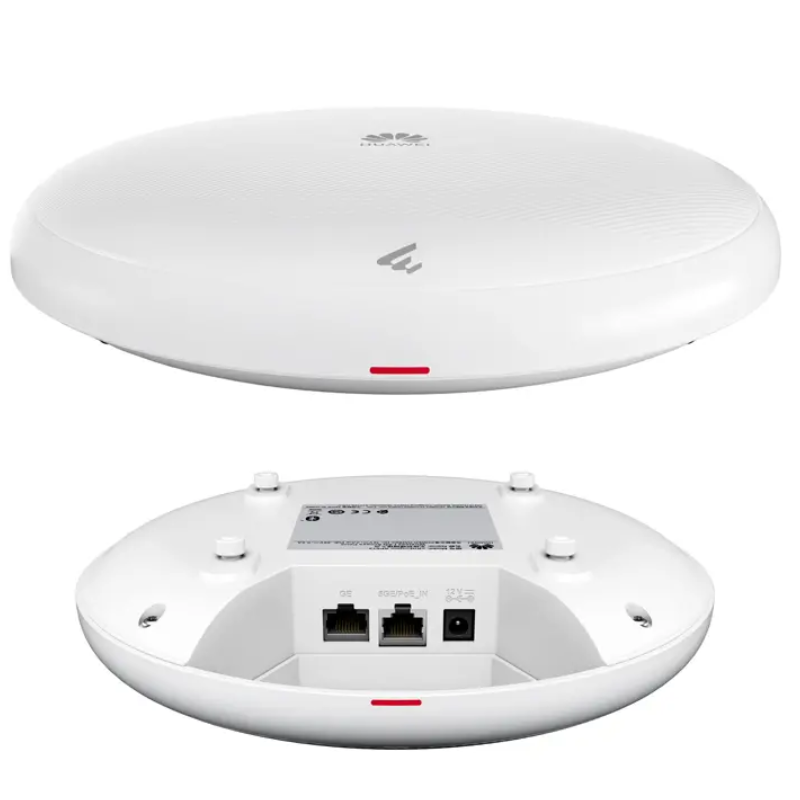

Huawei eKitEngine AP673 Wireless Access Point

Product Overview & Features Description

Supercharge your enterprise connectivity with the ultra-high-throughput Huawei eKitEngine AP673 Wireless Access Point. Engineered for elite enterprise campuses and high-density exhibition environments, this indoor settled tri-band Wi-Fi 7 (802.11be) unit delivers an astonishing aggregate data rate of up to 13.66 Gbps across 2.4 GHz, 5 GHz, and 6 GHz frequency bands. The Huawei eKitEngine AP673 Wireless Access Point leverages next-gen 320 MHz channel width on 6 GHz, 4096-QAM ultra-dense modulation, and Multi-Link Operation (MLO) to slash transmission latency down to sub-millisecond levels.

Designed with an 8-spatial-stream architecture (2×2 on 2.4 GHz, 2×2 on 5 GHz, and 4×4 on 6 GHz), the Huawei eKitEngine AP673 Wireless Access Point provides immense wireless bandwidth for bandwidth-hungry applications like 8K telepresence and VR collaboration. The built-in omnidirectional smart antenna system dynamically focuses radio beams toward moving user terminals, delivering up to a 40-meter optimal experience radius while actively suppressing interference.

Wired backhaul bottlenecks are eliminated thanks to an ultra-fast 5GE multi-gigabit Ethernet uplink port with 802.3at/af PoE IN support, paired with an additional GE port and USB expansion. Setting up the Huawei eKitEngine AP673 Wireless Access Point takes minimal effort via cloud management or the intuitive HUAWEI eKit mobile app. You can now purchase your Huawei eKitEngine AP673 Wireless Access Point directly from Editech Computers Store with comprehensive warranty coverage. Step into the future of wireless performance today by choosing the Huawei eKitEngine AP673 Wireless Access Point for your mission-critical network deployments.

Technical Specifications

Huawei eKitEngine AP673 Complete Connectivity Breakdown

• 1x 5GE Uplink Port (RJ45): 100M/1000M/2.5GE/5GE auto-sensing multi-gigabit connection with IEEE 802.3at/af Power over Ethernet (PoE IN).

• 1x GE Local Ethernet Port (RJ45): 10M/100M/1000M LAN connection for direct PC, printer, or local terminal bridging.

• 1x USB Type-A Port: Expandable for external IoT communication dongles and serial maintenance accessories.

• 1x 12V DC Barrel Jack: Direct power input option when deploying in non-PoE network architectures.

• Integrated Radios: Tri-band concurrent 2.4 GHz, 5 GHz, and 6 GHz radios, along with built-in Bluetooth for effortless zero-touch mobile pairing.

Huawei eKitEngine AP673 Pros & Key Benefits

• Massive 13.66 Gbps Tri-Band Speed: The inclusion of clean 6 GHz spectrum and ultra-wide 320 MHz channels unlocks unmatched bandwidth for dense enterprise computing.

• True 5GE Wired Uplink: Matches wired network throughput to Wi-Fi 7 wireless speeds, eliminating 1 Gbps backhaul bottlenecks entirely.

• Intelligent Smart Antennas: Automatically tracks user device positions to maintain high signal strength and reduce co-channel interference across a 40-meter radius.

• Enterprise High-Density Concurrency: Seamlessly accommodates up to 300 recommended active users (and up to 1,024 total access clients) without latency spikes.

• Flexible Management Modes: Deploy in Standalone Fat AP mode, integrate into an on-premise Wireless Access Controller (Fit AP), or manage remotely via Huawei eKit Cloud.

Variation Price Matrix (Kenya Shillings – KSh)

Build your full multi-gigabit campus network and shop for more Huawei Networks deals at Editech.

Huawei eKitEngine AP673 Suitable Application Areas

1. Large Enterprise Campuses & Executive Boardrooms: High-definition video conferencing, heavy cloud syncs, and lag-free screen sharing across hundreds of corporate devices simultaneously.
2. University Lecture Theatres & Convention Centers: Massive 300-user concurrency support handles auditoriums filled with laptops and mobile devices during major events.
3. High-Tech R&D Labs & Creative Design Studios: The clean, interference-free 6 GHz band provides multi-gigabit throughput needed for large CAD models and raw video transfer.
4. Modern Hotels & Convention Centers: 40-meter smart antenna coverage provides consistent connectivity throughout ballrooms, lobbies, and meeting halls.

Frequently Asked Questions (FAQs)

Q: What is in the box when I purchase?

• 1x Huawei eKitEngine AP673 Wireless Access Point unit
• 1x Universal Mounting Bracket (compatible with ceilings, T-rails, drywall, and junction boxes)
• 1x Hardware Screw & Anchor Installation Kit
• Quick Start Installation and Safety Documentation

Q: What type of switch is required to power the AP673 at full performance?The access point works best with an IEEE 802.3at (PoE+) enabled switch—ideally equipped with 2.5GE or 5GE multi-gigabit ports to avoid throttling wireless traffic. It can also operate on basic 802.3af PoE (with limited peripheral functions like USB disabled) or via a 12V DC power adapter.

Q: Where can I obtain the official installation guide and technical datasheets? Access official technical schematics, deployment procedures, and firmware notes directly from the Huawei eKitEngine AP673 Wireless Access Point Datasheet and Support Hub.

Q: How do I purchase this access point in Kenya? Available at the Editech Computers Store in Nairobi for in-store pickup, or order through Online Purchase with Countrywide delivery across Kenya.

The Huawei eKitEngine AP673 Wireless Access Point represents the pinnacle of modern enterprise wireless infrastructure. By pairing true tri-band Wi-Fi 7 performance and 13.66 Gbps wireless bandwidth with a dedicated 5GE multi-gigabit uplink, dynamic beamforming antennas, and 300-user concurrent scalability, it delivers an uncompromising, future-proof network backbone for growing enterprises.
