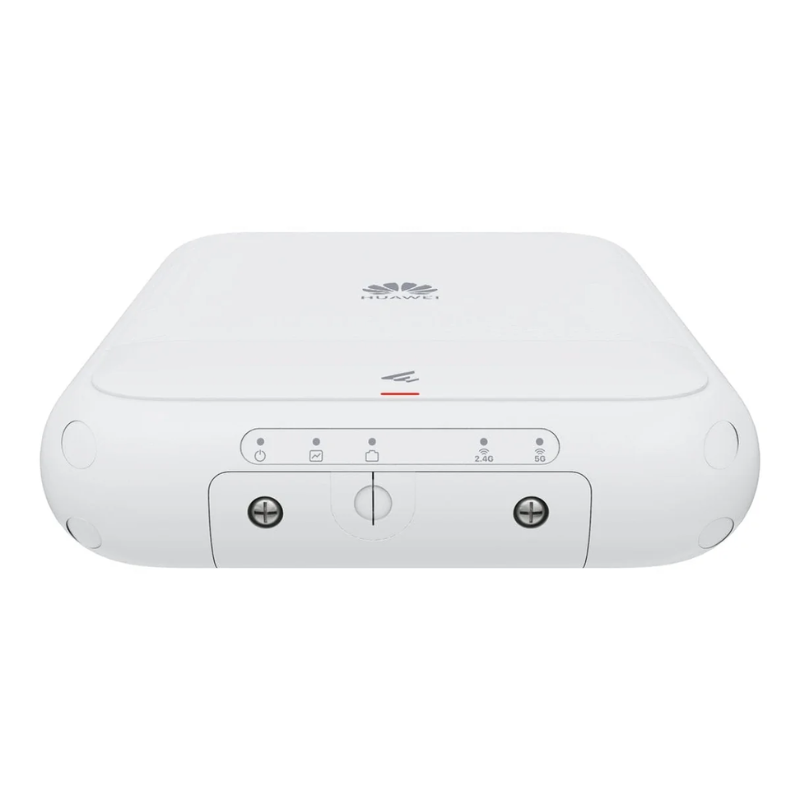

Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point

Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point

Product Overview & Features Description

Supercharge your outdoor wireless infrastructure with the industrial-grade Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point. Built on next-generation 802.11be protocol architecture, this dual-band outdoor AP delivers lightning-fast aggregate speeds of up to 3.57 Gbps (up to 0.688 Gbps on 2.4 GHz and 2.882 Gbps on 5 GHz), empowering enterprises to support high-density wireless environments with ultra-low latency and higher spectrum efficiency.

The Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point features built-in 360-degree omnidirectional smart antennas and 4K-QAM modulation, extending reliable wireless coverage up to a 130-meter radius. Engineered for extreme weather and harsh climates, the Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point boasts a rugged IP68-rated waterproof and dustproof housing, integrated 6 kA surge protection, and wide operating temperature resilience.

Equipped with a high-bandwidth 2.5GE multigigabit Ethernet uplink port with Power over Ethernet (PoE) support, the Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point eliminates network bottlenecks between your wireless edge and core switches. Management is streamlined via the Huawei eKit app and SME cloud platform, enabling one-click deployment, rapid mesh expansion, and real-time RF optimization.

Deploy the Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point to deliver uninterrupted, high-capacity wireless roaming for campus grounds, outdoor hospitality, and logistics hubs. You can buy the authentic Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point at Editech Computers Store with genuine manufacturer warranty coverage. Upgrade your enterprise network today with the Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point for unmatched outdoor connectivity.

Technical Specifications

Specification Field	Technical Detail
Product Model Name	Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point
Wireless Protocol	Wi-Fi 7 (IEEE 802.11be), backwards compatible with 802.11a/b/g/n/ac/ax
Radio Streams	Dual-band: 2.4 GHz (2×2 MIMO) + 5 GHz (2×2 MIMO)
Maximum Data Rate	Up to 3.57 Gbps combined (574/688 Mbps @ 2.4 GHz + 2882 Mbps @ 5 GHz)
Antenna Type	Built-in omnidirectional smart antennas (360° horizontal coverage)
Antenna Gain	4 dBi (2.4 GHz) / 5 dBi (5 GHz)
Coverage Radius	Up to 130 meters line-of-sight
User Capacity	Up to 256 concurrent clients (recommended 130 active users)
Ethernet Uplink Port	1 x 100M/1000M/2.5GE Auto-Sensing RJ-45 (PoE-In)
Ingress Protection Rating	IP68 / IP65 industrial weatherproof enclosure
Surge Protection	Integrated 6 kA / 6 kV Ethernet surge protection
Power Supply	PoE (802.3at/af compliant) or 12V DC input; Max power draw: ~18.8W
Management Modes	Huawei eKit Cloud, Web Management, eKit Mobile App, Fit/Fat AP
Security Protocols	WPA, WPA2, WPA3-Enterprise / Personal, 802.1X, Rogue AP detection
Operating Temperature	-30°C to +65°C

Huawei eKitEngine AP771 Connectivity & Physical Interfaces

• 2.5GE Ethernet Uplink Port: 1x 100/1000/2500 Mbps RJ-45 port supporting 802.3at PoE power input and high-throughput backhaul connectivity.

• DC Power Port: 1x 12V DC power jack for optional direct adapter powering.

• Console / Maintenance: 1x Micro-USB / RJ45 maintenance interface and physical factory reset pin.

• Status Indicators: Multi-color LED status lights indicating Power, System, LAN/Uplink, and Radio state.

Huawei eKitEngine AP771 Pros & Key Benefits

• Wi-Fi 7 Multi-Link Operation (MLO): Allows connected devices to transmit data across 2.4 GHz and 5 GHz bands simultaneously, slashing latency and eliminating jitter.

• 4K-QAM High-Density Encoding: Increases throughput by 20% compared to Wi-Fi 6, allowing faster downloads and effortless multi-stream 4K/8K surveillance streaming.

• Multi-Gigabit 2.5GE Port: Prevents LAN bottlenecks by matching multi-gigabit wireless transmission rates with a high-speed wired port.

• IP68 Extreme Weather Durability: Engineered to withstand pouring rain, dust storms, direct sun exposure, and lightning strikes up to 6 kA.

• Cloud App Zero-Touch Onboarding: Provision, monitor, and troubleshoot the entire site remotely via Huawei eKit cloud or mobile phone app without expensive hardware controllers.

Huawei eKitEngine AP771 Variation Price Matrix (Kenya Shillings – KSh)

Access Point Model	Wi-Fi Standard	Max Combined Rate	Deployment Type	Estimated Price (KSh)
eKitEngine AP362 / AP362E	Wi-Fi 6 (802.11ax)	Up to 2.975 Gbps	Indoor Enterprise	KSh 22,500
eKitEngine AP661	Wi-Fi 6 (802.11ax)	Up to 3.57 Gbps	Outdoor Enterprise	KSh 42,000
eKitEngine AP771 (Featured)	Wi-Fi 7 (802.11be)	Up to 3.57 Gbps (2.5GE PoE)	Outdoor IP68	KSh 64,500
eKitEngine AP871	Wi-Fi 7 (802.11be)	Up to 6.57 Gbps (Dual 2.5GE)	Outdoor Ultra-Density	KSh 88,000

Pair your access point with enterprise multi-gigabit PoE switches: Shop for more Huawei Networks deals at Editech.

Suitable Application Areas

1. School & University Campuses: Provides broad, seamless outdoor Wi-Fi coverage across sports fields, quads, and open study pavilions.

2. Hotels, Lodges & Beach Resorts: Delivers high-speed internet to guests across swimming pools, gardens, and outdoor dining terraces without dropouts.

3. Logistics Yards & Warehouses: Maintains continuous connectivity for handheld barcode scanners, AGVs, and fleet telemetry across loading docks.

4. Smart Parks & Outdoor Venues: Handles dense user crowds at open-air exhibitions, markets, and public squares with intelligent RF interference mitigation.

Frequently Asked Questions (FAQs)

Q: What is in the box when I purchase?

• 1x Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point unit
• 1x Universal Pole/Wall Mounting Bracket kit
• Waterproof cable gland connectors for RJ-45 sealing
• Grounding wire assembly with screws
• Quick Start Installation and Safety Guide

Q: Does the AP771 require a dedicated hardware AC controller?

No. The AP771 can operate in Fat AP mode, Cloud Managed mode via the Huawei eKit cloud platform/app, or integrate into an existing Huawei Access Controller (AC) architecture.

Q: How is the access point powered?

It is primarily powered via standard PoE (802.3at PoE+ compliant) through the 2.5GE RJ-45 network cable, or alternatively with a 12V DC power adapter.

Q: Where can I download mounting guides and firmware?

Find detailed pole/wall installation manuals and updates on the Huawei eKit Documentation & Support Portal.

Q: How do I order this unit in Kenya?

Available directly at Editech Computers Store in Nairobi for physical pickup or via Online Purchase with Countrywide delivery across Kenya.

The Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point provides high performance for organizations extending modern high-speed networks into the outdoors. Combining Wi-Fi 7 throughput, a 2.5GE PoE uplink, and an IP68-sealed chassis, it delivers broad coverage and reliable durability for enterprise campus deployments.
