HUAWEI eKit AR180 Plus enterprise-grade Wi-Fi 7 router

HUAWEI eKit AR180 Plus enterprise-grade Wi-Fi 7 router

Product Overview & Features Description

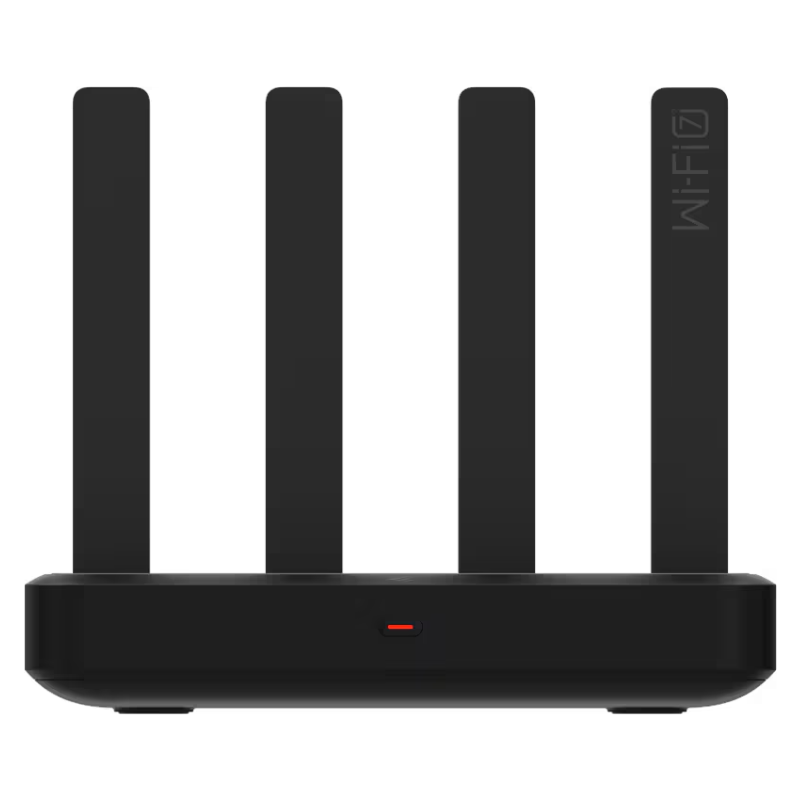

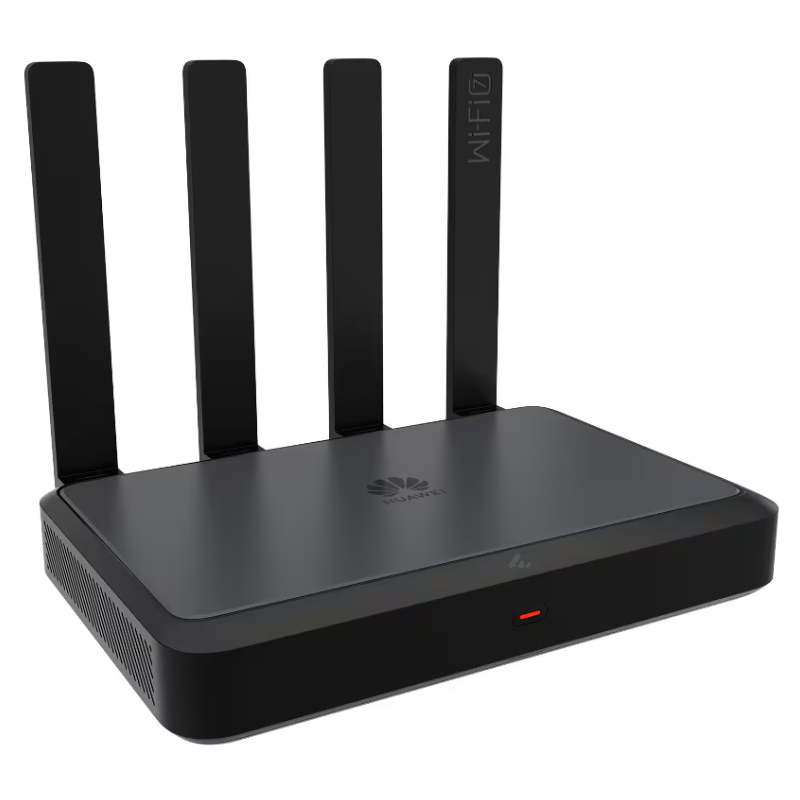

Revolutionize your corporate network infrastructure with the HUAWEI eKit AR180 Plus, an enterprise-grade Wi-Fi 7 wireless router designed for small to medium businesses, branch offices, and high-density commercial workspaces. Delivering dual-band concurrent wireless throughput of up to 3600 Mbps, this high-speed gateway leverages Wi-Fi 7 Multi-Link Operation (MLO) to aggregate channels, slash latency, and maintain rock-solid wireless stability under heavy loads. The HUAWEI eKit AR180 Plus features four external high-gain smart foldable antennas and support for up to 100 concurrent endpoints, ensuring seamless wireless coverage across your entire premises.

Wired networking on the HUAWEI eKit AR180 Plus is engineered for bandwidth-heavy ISP connections, featuring one high-speed 2.5GE WAN/LAN uplink port alongside four Gigabit Ethernet interfaces. With intelligent traffic management, application-level bandwidth control, and a dedicated Turbo acceleration port, business-critical traffic—such as VoIP, videoconferencing, and cloud collaboration—is prioritized ahead of background tasks.

Deploying branches is secure and straightforward. The HUAWEI eKit AR180 Plus provides hardware-accelerated IPSec VPN capabilities, establishing encrypted site-to-site tunnels to safeguard sensitive transactions. In addition, built-in Smart Mesh technology lets network admins manage and auto-sync up to 8 eKit access points effortlessly.

Order your genuine HUAWEI eKit AR180 Plus directly from Editech Computers Store to elevate your connectivity standards. Every HUAWEI eKit AR180 Plus unit comes with full vendor warranty coverage and dedicated after-sales setup support. Experience unmatched enterprise performance by investing in the HUAWEI eKit AR180 Plus for your organization.

Technical Specifications

Specification Field	Technical Detail
Product Model Name	HUAWEI eKit AR180 Plus Enterprise-Grade Wireless Router
Wireless Protocol Standards	Wi-Fi 7 (802.11be), backward compatible with 802.11a/b/g/n/ac/ax
Max Combined Wireless Throughput	Up to 3600 Mbps dual-band concurrent
Antenna Configuration	4x External High-Gain Foldable Smart Antennas
Egress Bandwidth Throughput	Up to 2 Gbps
IPSec VPN Forwarding Speed	Up to 200 Mbps encrypted forwarding performance
High-Speed WAN/LAN Interfaces	1x 2.5GE (10/100/1000/2500 Mbps) RJ45 port
Local Gigabit LAN Interfaces	4x GE (10/100/1000 Mbps) RJ45 ports (Supports WAN/LAN remapping)
AP Management & Mesh	Built-in Wireless Access Controller (WAC) managing up to 8 APs; Smart Mesh
Terminal Capacity	Supports up to 100 concurrent client devices
Security & Authentication	IPSec VPN, SPI Firewall, Portal/SMS/Social Auth, WPA3-Enterprise, DoS defense
Cooling & Acoustics	Fanless passive heat dissipation, 0 dB silent operation
Power Supply	External AC Power Adapter (Rated 110V–220V AC, Max Consumption: 13 W)
Dimensions & Weight	195 mm x 130 mm x 35 mm; Chassis Weight: 0.75 kg
Mounting Options	Desktop / Workbench placement or Wall-mount

HUAWEI eKit AR180 Plus Connectivity & Port Breakdown

• 1x 2.5GE RJ45 Port: Configurable as a 2.5 Gbps Multi-Gigabit WAN or high-speed LAN backbone link.

• 4x Gigabit Ethernet (GE) RJ45 Ports: Standard LAN ports (GE2–GE4 can be software-configured as secondary WAN ports for multi-ISP failover and load balancing).

• Turbo Acceleration Port: Prioritizes real-time packets automatically upon connection to prevent jitter and latency spikes.

• Wireless Radios: Dual-band concurrent Wi-Fi 7 (2.4 GHz & 5 GHz) with Multi-Link Operation (MLO).

• Hardware Buttons & LEDs: Reset button (factory restore), single-click LED sleep switch, and status indicators (System, WAN, LAN).

HUAWEI eKit AR180 Plus Pros & Key Benefits

• Next-Gen Wi-Fi 7 Efficiency: Multi-Link Operation (MLO) enables simultaneous transmission across bands, lowering ping times and reducing congestion.

• Multi-Gigabit 2.5GE Uplink: Eliminates bandwidth bottlenecks from ultra-fast fiber connections, delivering full speeds to office switches and access points.

• Integrated AP Controller: Eliminates the need for a separate hardware AC; manages up to 8 Huawei eKit APs directly through the router’s interface.

• Zero-Noise Fanless Architecture: Passive heat dissipation guarantees silent operation, making it ideal for quiet conference rooms, reception desks, and small server closets.

• Enterprise Security & Cloud Management: Offers IPSec VPN, granular application filtering, guest portal authentication, and centralized Huawei eKit app management.

Variation Price Matrix (Kenya Shillings – KSh)

Model Variation	Uplink & LAN Ports	Wireless Standard	AP Management	Estimated Price (KSh)
HUAWEI eKit AR180	1x 2.5GE WAN + 4x GE LAN	Wi-Fi 7 (3600 Mbps)	Up to 4 APs	KSh 18,500
HUAWEI eKit AR180 Plus (This Model)	1x 2.5GE WAN + 4x GE LAN	Wi-Fi 7 (3600 Mbps)	Up to 8 APs	KSh 24,000
HUAWEI eKit AR180 Pro	2x 2.5GE Ports + 4x GE LAN	Wi-Fi 7 (Multi-Gig Egress)	Up to 16 APs	KSh 32,500
HUAWEI eKit AR280 Enterprise	Dual 2.5GE + Multi-WAN	Wi-Fi 7 High-Density	Up to 32 APs	KSh 45,000

Upgrade your IT setup and shop for more Huawei Networks deals at Editech.

Suitable Application Areas

1. Small to Medium Enterprise (SME) Offices: Powers 50–100 active devices across departments with smooth videoconferencing, VoIP calls, and high-speed cloud backups.

2. Branch Offices & Remote Hubs: Creates secure IPSec VPN tunnels back to corporate data centers while offering local multi-WAN redundancy.

3. Retail Outlets, Cafes, and Boutique Hotels: Captive portal capabilities allow guest onboarding via SMS or social media login alongside isolated staff networks.

4. Medical Clinics & Consulting Practices: Silent, fanless operation and clean wall-mounting make it suitable for examination rooms and reception areas.

Frequently Asked Questions (FAQs)

Q: What is in the box when I purchase?

• 1x HUAWEI eKit AR180 Plus Enterprise Wireless Router
• 1x External AC Power Adapter (12V/2A)
• 1x Ethernet Patch Cable
• Wall-mounting screw kit and base feet
• Quick Start Guide and Warranty Documentation

Q: Can I expand coverage using additional access points?

Yes. The AR180 Plus features a built-in wireless access controller that can coordinate up to 8 Huawei eKit Wi-Fi 6 or Wi-Fi 7 access points via Smart Mesh or wired Ethernet backhaul.

Q: Does the router make fan noise during heavy workloads?

No. It features a fanless, natural heat dissipation design that runs silently under full network loads.

Q: Where can I download firmware updates and user guides?

Access official firmware releases, configuration manuals, and technical datasheets directly on the HUAWEI eKit AR180 Plus Documentation and Installation Guide Support Hub.

Q: How do I order this router in Kenyahttps://editech.co.ke/product-category/networking/routers/?

Available directly at the Editech Computers Store in Nairobi for physical pickup or via Online Purchase with Countrywide delivery across Kenya.

The HUAWEI eKit AR180 Plus provides a balanced blend of next-generation Wi-Fi 7 performance, multi-gigabit wired flexibility, and enterprise security. Whether replacing an aging Wi-Fi 5 router or standardizing connectivity across multiple branch offices, its 2.5GE uplink, built-in access point controller, and silent fanless design make it a versatile, long-term network foundation.
